Chain Link Fence
Shengsen Wire Mesh Co., supply chain link fence manufactured from galvanized or PVC coated steel wire, widely used for perimeter security, sports fields, industrial sites, and residential areas, and classified into galvanized, PVC coated, standard, and heavy-duty chain link fencing systems.
Category: Fence Series
Chain Link Fence Systems with Diamond Wire Mesh
Chain link fence is manufactured from low-carbon steel wire, commonly finished with hot-dipped galvanizing or PVC coating for corrosion resistance. It features a diamond mesh structure providing strength, flexibility, and clear visibility. Widely used for perimeter security, sports facilities, industrial plants, highways, and residential areas, chain link fencing is economical and easy to install. It is classified into galvanized chain link fence, PVC coated chain link fence, standard, and heavy-duty chain link fencing systems.
Specifications
- Wire Material: Low-carbon steel wire, carbon steel wire, or galvanized steel wire
- Wire Diameter: 1.6–4.0 mm (16–8 gauge) for light to heavy-duty fencing
- Mesh Opening Size: 25×25 mm, 40×40 mm, 50×50 mm, or 60×60 mm diamond mesh
- Fence Height: 0.9–4.0 m standard fencing height range
- Roll Length: 10 m, 15 m, 20 m, or 25 m per roll
- Surface Treatment: Electro-galvanized, hot-dipped galvanized, PVC coated, or PE coated
- Zinc Coating Weight: 60–300 g/m² for hot-dipped galvanized wire
- PVC Coating Thickness: 0.4–1.2 mm over galvanized steel core
- Manufacturing Process: Wire drawing, galvanizing, twisting, diamond mesh weaving
- Selvage Type: Knuckled-knuckled, twisted-twisted, or knuckled-twisted edges
- Tensile Strength: 350–700 MPa depending on steel grade
- Fence Classification: Galvanized, PVC coated, standard, or heavy-duty chain link fence systems
Features
- Strong and Flexible: Diamond mesh resists impact without breaking
- Corrosion Resistant: Galvanized or PVC coating protects against rust
- Good Visibility: Open mesh allows clear sight and airflow
- Low Cost: Economical fencing for large areas
- Easy Installation: Lightweight rolls install quickly
- Easy Maintenance: Damaged sections are easy to repair
- Multiple Options: Various wire sizes, mesh openings, and heights
- Long Service Life: Durable steel wire performs well outdoors
Applications
- Perimeter Security Fencing: Protects factories, warehouses, and industrial boundaries while maintaining visibility
- Sports Field Enclosures: Used for football fields, tennis courts, playgrounds, and ball containment
- Residential Boundary Fencing: Defines property lines for homes and housing areas
- Commercial and Industrial Sites: Secures logistics centers, power plants, and construction areas
- Highway and Roadside Fencing: Separates traffic zones and improves roadside safety
- Airport and Port Security: Provides perimeter protection for restricted and high-security areas
- Agricultural and Farm Fencing: Encloses farmland, livestock, and poultry areas
- Temporary and Construction Fencing: Suitable for short-term sites with fast installation and removal

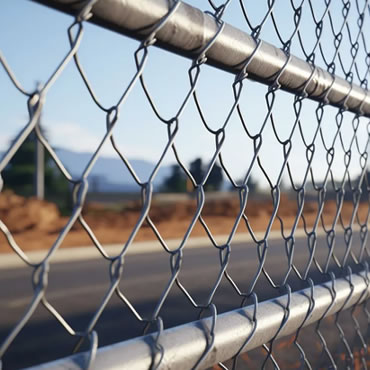

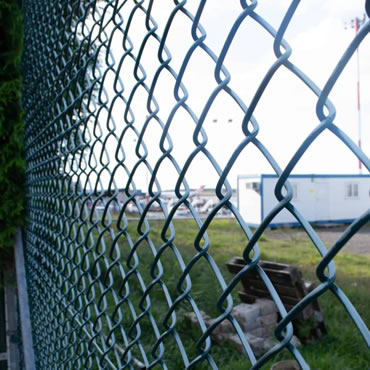

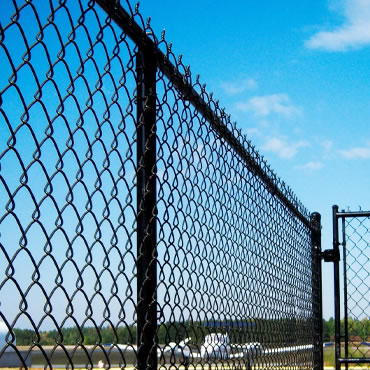

Product Images
Chain Link Fence Specifications
| Galvanized Chain Link Fence | |||||||||
| Mesh Opening | 1" | 1.5" | 2" | 2-1/4" | 2-3/8" | 2-1/2" | 2-5/8" | 3" | 4" |
| Metric | 25mm | 40mm | 50mm | 57mm | 60mm | 64mm | 67mm | 75mm | 100mm |
| Wire Diameter (BWG) | BWG18–BWG13 | BWG16–BWG8 | BWG14–BWG7 | ||||||
| Wire Diameter (mm) | 1.2–2.4mm | 1.6–4.2mm | 2.0–5.0mm | ||||||
| Roll Length | 0.5m–100m (or more) | ||||||||
| Roll Width | 0.5m–5.0m | ||||||||
| Material and specification can be produced as per customers’ detailed requirements. | |||||||||
| PVC Coated Chain Link Fence | |||
| Mesh Opening | Wire Diameter | Width | Length |
| 60×60mm | 2.0/3.0mm | 0.5–5m | 10–50m |
| 60×60mm | 2.2/3.2mm | 0.5–5m | 10–50m |
| 50×50mm | 1.8/2.8mm | 0.5–5m | 10–50m |
| 50×50mm | 2.0/3.0mm | 0.5–5m | 10–50m |
| 50×50mm | 2.2/3.2mm | 0.5–5m | 10–50m |
