Hexagonal wire mesh in galvanized, PVC coated, and stainless steel options.

Hexagonal wire mesh is manufactured from galvanized steel wire, PVC coated wire, or stainless steel wire, featuring a flexible hexagonal structure. It is widely used for poultry fencing, animal enclosures, garden protection, gabion baskets, and slope stabilization. Classified by surface treatment, weaving method (twisted or reverse twisted), wire diameter, and mesh opening, hexagonal wire mesh provides durability, corrosion resistance, and easy installation for agricultural, civil engineering, and landscaping applications.

Specifications

• Material: Q195/Q235 low-carbon steel, 304/316 stainless steel, or PVC-coated steel wire.
• Wire Diameter Range: 0.4–3.0 mm for light fencing, poultry netting, and heavy gabion applications.
• Mesh Opening Size: 10–120 mm, commonly 20, 25, 40, 50, 60, and 80 mm.
• Roll Width Options: 0.5–2.0 m, with standard widths of 1.0 m, 1.2 m, and 1.5 m.
• Roll Length Range: 5–50 m, typically supplied in 10 m, 25 m, and 30 m rolls.
• Zinc Coating Weight: 30–260 g/m² depending on galvanizing process and exposure conditions.
• PVC Coating Thickness: 0.4–1.0 mm for enhanced corrosion and weather resistance.
• Twisting Type: Single-twisted (normal twist) or double-twisted (reverse twist) structures.
• Wire Gauge Range: BWG 22–BWG 14, covering light-duty to heavy-duty mesh requirements.
• Tensile Strength: 350–550 MPa to balance flexibility and mechanical strength.
• Gabion Mesh Sizes: 2.0–3.0 mm wire with common 60×80 mm or 80×100 mm openings.
• Edge Wire Diameter: Selvage wire typically 0.5–1.0 mm thicker than the body wire.

Features

• Flexible Structure: Twisted hexagonal mesh stays intact and flexible after cutting.
• Corrosion Resistance: Galvanized, PVC-coated, or stainless steel options for outdoor use.
• Anti-Unraveling Design: Double twisting prevents mesh from loosening or spreading.
• Wide Size Range: Wire 0.4–3.0 mm and openings 10–120 mm available.
• Good Strength: Tensile strength around 350–550 MPa for reliable performance.
• Easy Installation: Lightweight rolls are easy to cut, handle, and install.

Applications

• Poultry and Livestock Fencing: Used for chicken coops, poultry runs, and small livestock enclosures.
• Agricultural Boundary Fencing: Applied for farm fencing, crop protection, and garden boundaries.
• Gabion Baskets: Used to manufacture gabion baskets for retaining walls and erosion control.
• Riverbank and Canal Protection: Applied for river, canal, and shoreline reinforcement against erosion.
• Garden and Landscaping Use: Used for plant protection, tree guards, and decorative fencing.
• Construction Temporary Fencing: Used as temporary fencing on construction sites for safety separation.
• Small Animal Cages: Suitable for rabbit cages, bird enclosures, and pet fencing.
• Infrastructure Protection Works: Used in civil engineering projects for reinforcement and stabilization.

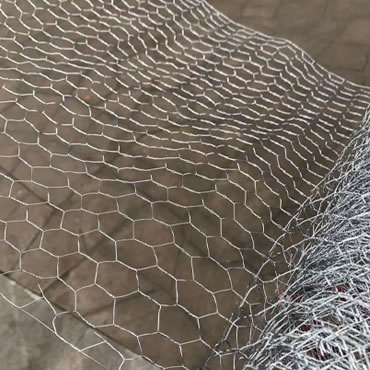

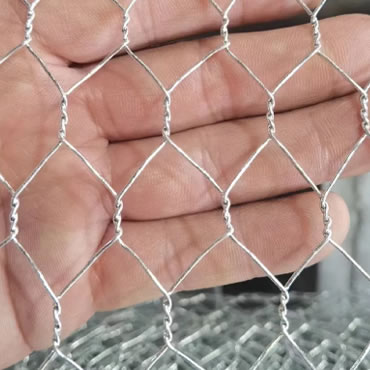

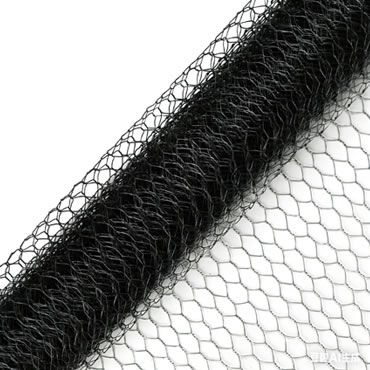

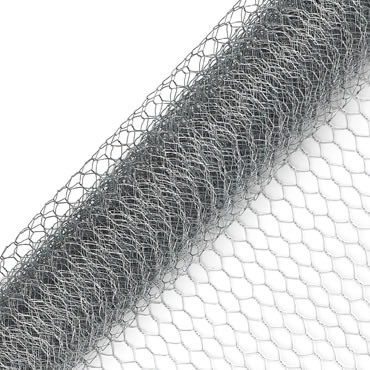

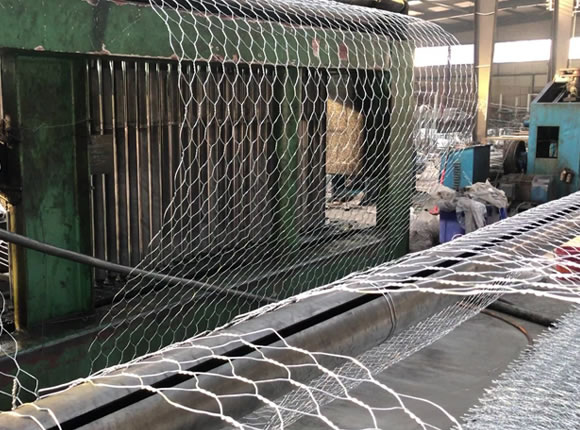

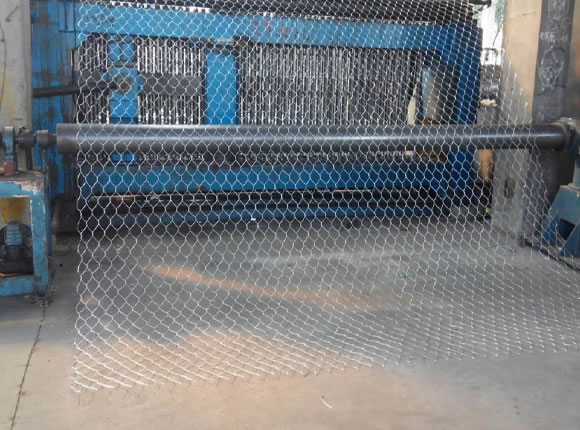

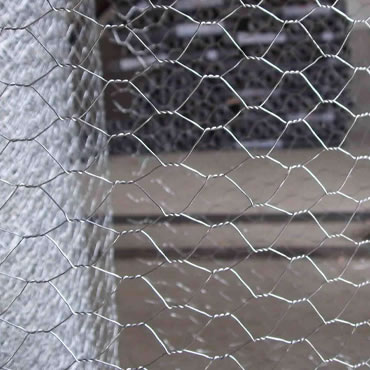

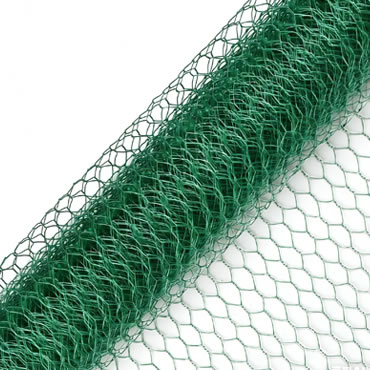

Product Images
