Triangle Welded Wire Fence Mesh with Reinforced V Bends

Triangle Fence Mesh is manufactured from low-carbon steel wire welded into a triangular bending structure, typically finished with hot-dipped galvanizing or polyester powder coating for corrosion resistance. The triangular folds enhance rigidity and impact strength while maintaining clear visibility. It is widely used for highway fencing, railways, residential areas, industrial zones, and public facilities. According to structure and application, triangle fence mesh is classified into single-bend, double-bend, and multi-bend welded mesh fence panels.

Specifications

• Wire Material: Low-carbon or medium carbon steel wire for welded panels
• Wire Diameter: 3.0–6.0 mm, commonly 4.0 mm or 5.0 mm
• Mesh Opening Size: 50×150 mm, 55×200 mm, or 75×150 mm
• Panel Width: 2.0–3.0 m, typically 2.5 m
• Panel Height: 0.63–2.43 m standard fence height
• Bending Structure: V-shaped triangular bends formed across the panel
• Bend Depth and Angle: 30–50 mm depth with 30–45° angle
• Number of Bends: 2–4 V-shaped bends per panel
• Surface Treatment: Hot-dipped galvanized or powder coated
• Zinc Coating Weight: 40–275 g/m² corrosion protection
• Powder Coating Thickness: 60–120 μm polyester coating
• Post Size: Ø48 mm round or 60×40 mm rectangular posts
• System Height: 0.8–3.0 m including fence posts

Features

• High Structural Rigidity: V-shaped triangular bends improve panel stiffness and strength
• Durable Welded Mesh: Strong welded joints ensure consistent mesh alignment
• Corrosion-Resistant Surface: Galvanized or powder-coated finishes resist rust and weather
• Clear Visibility Design: Open mesh allows visibility and airflow
• Lightweight and Easy Installation: Panel design enables fast handling and installation
• Wide Specification Range: Multiple wire sizes, mesh openings, and panel heights available
• Cost-Effective Solution: Reliable perimeter fencing at lower cost
• Long Service Life: Durable materials ensure stable outdoor performance

Applications

• Highway and Roadside Fencing: Used for boundary definition and traffic safety control
• Railway and Metro Protection: Prevents trespassing and improves rail corridor safety
• Residential Area Fencing: Defines community boundaries with clear visibility
• Industrial and Factory Perimeters: Secures factories while allowing airflow and monitoring
• School and Public Facilities: Provides safety separation for schools and institutions
• Parks and Green Spaces: Suitable for landscaping areas requiring open visibility
• Airport and Infrastructure Areas: Used for perimeter guidance and access control
• Commercial and Logistics Areas: Protects warehouses and logistics sites economically

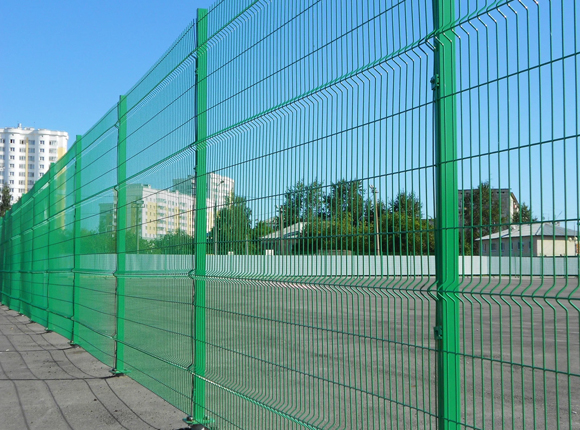

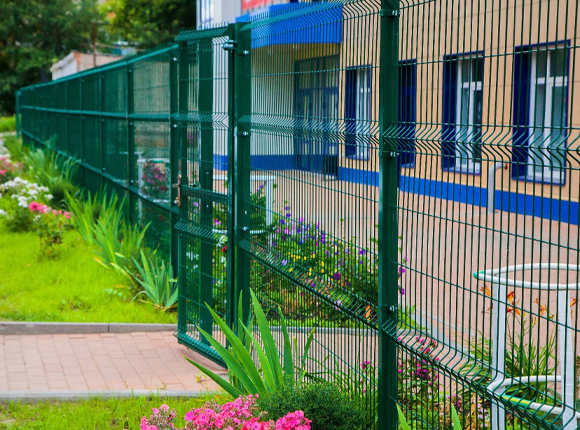

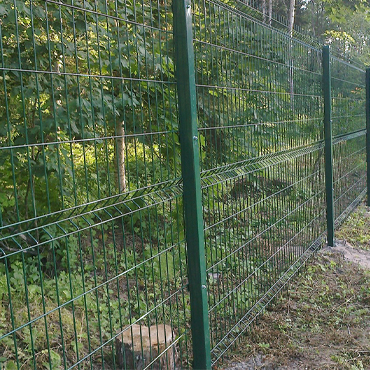

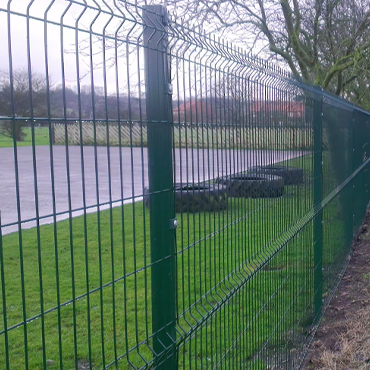

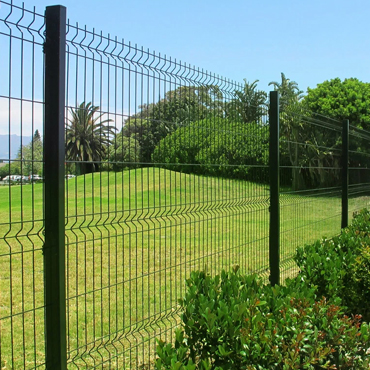

Product Images
