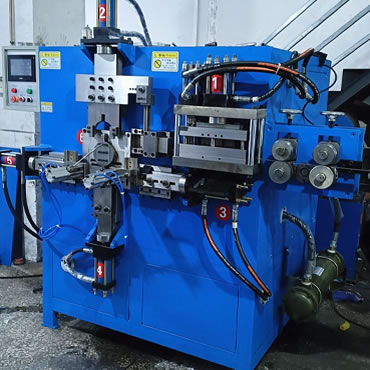

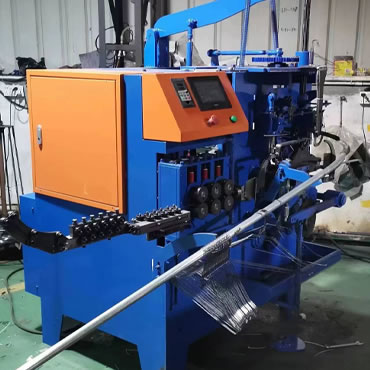

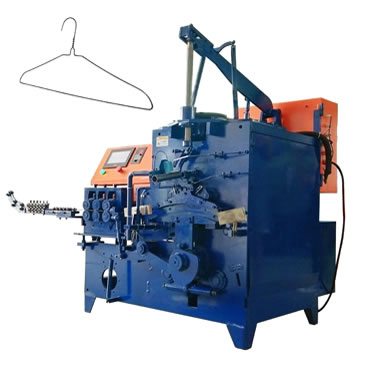

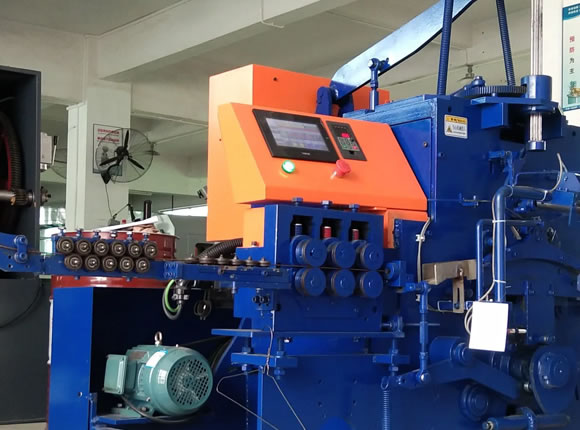

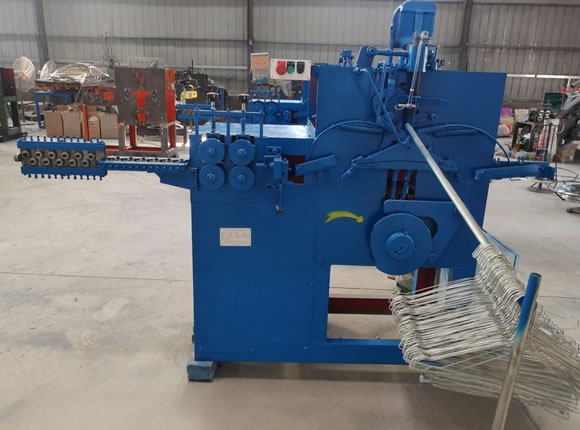

Hanger Making Machine

Hanger Making Machine Technical Parameters

Version 1: Brief Version (For Download & Product List)

Product Name

Automatic Wire Hanger Forming Machine

Core Parameters

1. Applicable Wire Diameter: 1.8–3.5 mm
2. Production Speed: 30–50 pcs/min
3. Hanger Size: 11–20 inches (Customizable)
4. Main Motor Power: 1.5–2.2 kW
5. Working Voltage: 380V 50Hz (220V Customizable)
6. Control System: PLC + Touch Screen
7. Machine Weight: 700–950 kg
8. Overall Dimension (L×W×H): 1800×1200×1680 mm

Key Features

Integrated automatic wire feeding, bending, cutting and hook welding; Servo control, high precision, fast mold change, stable and durable.

Version 2: Full Version (For Product Detail Page & Formal Use)

1. Product Overview

This full-automatic wire hanger forming machine integrates automatic wire feeding, bending, cutting and hook welding. It is suitable for galvanized iron wire, stainless steel wire, PVC coated wire and other materials, and is widely used in the mass production of household and commercial hangers. The machine is stable, durable and easy to integrate into batch production lines, reducing manual intervention and improving production efficiency.

2. Basic Technical Parameters

3. Key Features

1. Fully automatic integrated production: completes wire feeding, forming, cutting and hook welding in one continuous process, with almost no manual intervention.
2. Adopts servo / inverter control system, ensuring high forming accuracy and stable operation even during long-term continuous production.
3. Fast mold replacement design, which can quickly switch between different hanger sizes and models to meet diversified production needs.
4. Equipped with automatic counting, fault alarm and emergency stop protection functions, which is safe and easy to operate.
5. Compatible with multiple wire materials, including galvanized wire, stainless steel wire, PVC coated wire and aluminum wire.
6. Low noise and low energy consumption, conforming to industrial environmental protection and energy saving standards.

4. Application Scope

1. Wire Materials: Galvanized iron wire, stainless steel wire, PVC coated wire, aluminum wire.
2. Finished Products: Standard hangers, non-slip hangers, special hangers for hotels and supermarkets, children's hangers.
3. Applicable Industries: Hanger manufacturing factories, hardware products factories, garment accessory supporting production lines.

5. Optional Configurations

1. Automatic PVC coating / dipping module
2. Hanger hook welding integrated machine
3. Finished product collecting and stacking device
4. Customized molds for large-size / heavy-duty hangers
