Gabion Box
Shengsen Wire Mesh Co., supply gabion boxes for erosion control and structural protection, widely used in river training, slope stabilization, retaining walls, and road projects, and commonly categorized into welded gabion boxes, hexagonal woven gabions, gabion mattresses, and reinforced gabion systems.
Category: Gabion Series
Gabion Box Solutions for River, Slope, and Road Protection
Gabion box is manufactured from galvanized or PVC coated steel wire mesh, assembled into rectangular baskets and filled with stone for strength and flexibility. It is widely used for retaining walls, riverbank protection, slope stabilization, erosion control, and road engineering projects. Gabion structures adapt well to ground movement and water flow while maintaining stability. According to structure and application, gabion boxes are classified into welded gabion boxes, hexagonal woven gabions, gabion mattresses, and reinforced gabion systems.
Specifications

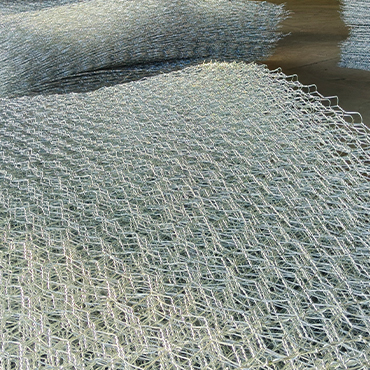

- Wire Material: Low-carbon steel wire with galvanized or PVC coating
- Wire Diameter: 2.0–4.0 mm, commonly 2.7 mm, 3.0 mm, or 3.5 mm

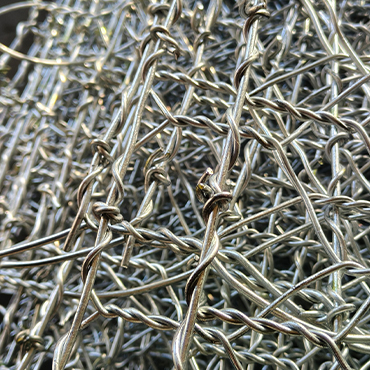

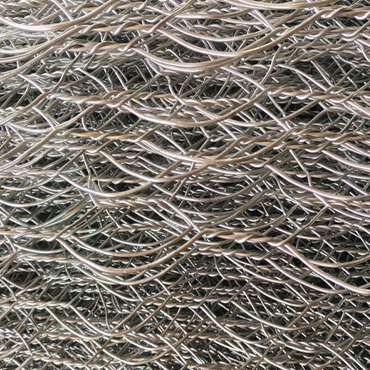

- Mesh Type: Hexagonal woven mesh or welded wire mesh
- Mesh Opening Size: 60×80 mm, 80×100 mm, 100×120 mm (woven) or 50×50 mm, 75×75 mm (welded)
- Box Length: 1.0–4.0 m, typically 2.0 m or 3.0 m
- Box Width: 0.5 m or 1.0 m standard
- Box Height: 0.3–1.0 m, commonly 0.5 m or 1.0 m
- Zinc Coating Weight: 40–275 g/m² corrosion protection
- PVC Coating Thickness: 0.4–1.0 mm over galvanized wire
- Edge & Lacing Wire: Edge wire 0.5–1.0 mm thicker, lacing wire 2.0–2.4 mm
- Manufacturing Process: Wire drawing, galvanizing, weaving or welding, cutting, assembly
- Gabion Classification: Gabion boxes, gabion mattresses, welded gabions, reinforced systems
Features
- Strong Load-Bearing Structure: Stone-filled baskets resist high earth and water pressure
- Excellent Flexibility: Adapts to ground movement without structural damage
- Superior Drainage Performance: Permeable structure relieves hydrostatic pressure
- Corrosion-Resistant Materials: Galvanized or PVC coated wire resists rust

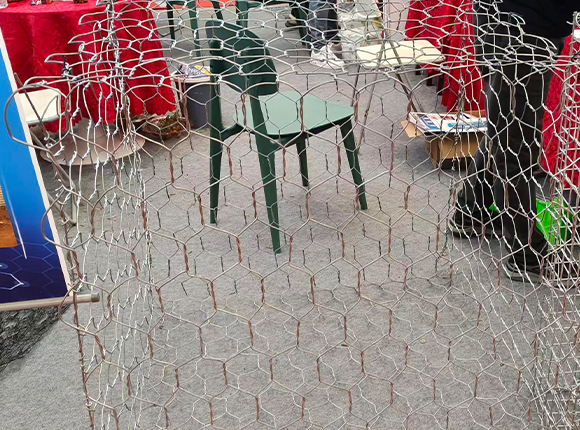

- Easy Installation: Flat-packed design enables quick on-site assembly
- Environmental Compatibility: Supports vegetation growth and natural appearance
- Wide Application Range: Used for rivers, slopes, retaining walls, and roads
- Long Service Life: Durable materials ensure long-term outdoor performance
Applications

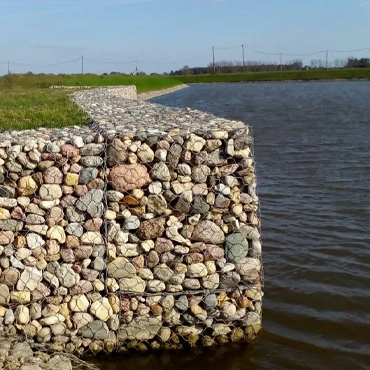

- Riverbank and Channel Protection: Stabilizes riverbanks and channels against erosion

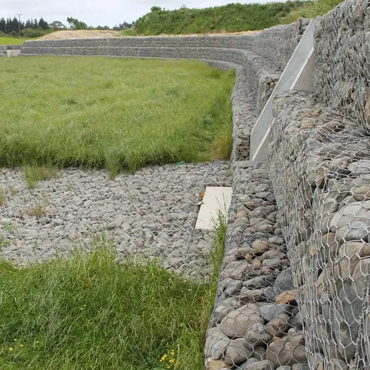

- Retaining Walls: Supports soil and controls slope movement

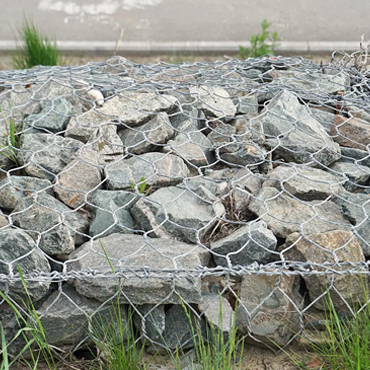

- Slope Protection: Prevents landslides and surface erosion
- Road and Highway Engineering: Protects embankments and improves drainage
- Bridge and Culvert Protection: Shields structures from water scouring
- Coastal and Shoreline Protection: Reduces wave impact and shoreline erosion
- Landscaping and Architectural Works: Used for decorative and structural walls
- Mining and Infrastructure Projects: Reinforces slopes and stabilizes ground
Product Images
Twistable Wire Mesh Specifications
| Mesh (inch) | Size Number (mm) | Limit Error | British System (BWG) | Metric Wire Diameter (mm) | Twistable Width (British) | Twistable Width (Metric) |
| 3/8" | 10 | +0.5 | BWG 27–23 | 0.41–0.64 | 1–6 ft | 0.1–2 m |
| 1/2" | 13 | −1.5 | BWG 27–22 | 0.41–0.71 | 1–6 ft | 0.1–2 m |
| 5/8" | 16 | +1.0 / −2.0 | BWG 27–22 | 0.41–0.71 | 1–6 ft | 0.1–2 m |
| 3/4" | 19 | +1.0 / −2.5 | BWG 26–20 | 0.46–0.89 | 1–6 ft | 0.1–2 m |
| 1" | 25 | +1.5 | BWG 25–19 | 0.51–1.07 | 1–6 ft | 0.1–2 m |
| 1.25" | 31 | −3.0 | BWG 24–18 | 0.56–1.24 | 1–6 ft | 0.2–2 m |
| 1.5" | 40 | +2.0 / −4.0 | BWG 23–16 | 0.64–1.65 | 1–6 ft | 0.2–2 m |
| 2" | 51 | +2.0 / −4.0 | BWG 22–14 | 0.71–2.11 | 1–6 ft | 0.2–2 m |
| 3" | 76 | +2.0 / −4.0 | BWG 21–14 | 0.81–2.11 | 1–6 ft | 0.3–2 m |
| 4" | 100 | +2.0 / −4.0 | BWG 20–12 | 0.89–2.80 | 1–6 ft | 0.5–2 m |
