Welded Gabion Baskets with High Strength and Long Service Life

Welded gabion is manufactured from galvanized or PVC coated steel wire mesh, welded into rigid panels and assembled into baskets filled with stone. It offers high strength, neat appearance, and excellent load-bearing performance. Welded gabions are widely used for retaining walls, slope protection, riverbank stabilization, landscaping, and architectural applications. According to structure and application, welded gabions are classified into welded gabion boxes, welded gabion baskets, welded gabion walls, and reinforced welded gabion systems.

Specifications

• Wire Material: Low-carbon steel wire with galvanized or PVC coating
• Wire Diameter: 3.0–6.0 mm, commonly 4.0 mm or 5.0 mm
• Mesh Opening Size: 50×50 mm, 75×75 mm, or 100×100 mm
• Panel Length: 1.0–4.0 m, typically 2.0 m or 3.0 m
• Panel Width: 0.5 m or 1.0 m standard
• Panel Height: 0.3–1.0 m, commonly 0.5 m or 1.0 m
• Zinc Coating Weight: 60–300 g/m² corrosion protection
• PVC Coating Thickness: 0.4–1.0 mm over galvanized wire
• Edge & Lacing Wire: Edge wire 0.5–1.0 mm thicker, lacing wire 2.2–3.0 mm
• Weld Strength: ≥75% of wire tensile strength
• Manufacturing Process: Wire drawing, welding, cutting, coating, assembly
• Welded Gabion Classification: Boxes, baskets, walls, reinforced systems

Features

• High Structural Strength: Rigid welded panels provide strong load-bearing capacity
• Precise and Uniform Structure: Consistent mesh size and straight edges ensure clean appearance
• Corrosion-Resistant Materials: Galvanized or PVC coated wire resists rust and weather
• Easy Assembly and Installation: Flat-packed panels enable fast on-site assembly
• Excellent Stone Retention: Small apertures securely hold stone fill
• Good Drainage Performance: Permeable structure relieves water pressure
• Aesthetic Appearance: Neat lines suit landscaping and architectural use
• Long Service Life: Durable materials ensure long-term outdoor performance

Applications

• Retaining Wall Construction: Supports soil and stabilizes embankments
• Slope Protection and Stabilization: Prevents landslides and surface erosion
• Riverbank and Channel Protection: Resists water scouring and erosion
• Road and Highway Engineering: Protects embankments and improves drainage
• Landscaping and Architectural Works: Used for decorative and structural walls
• Bridge and Culvert Protection: Shields structures from water erosion
• Residential and Commercial Boundaries: Forms boundary and retaining structures
• Mining and Infrastructure Projects: Reinforces slopes and stabilizes ground

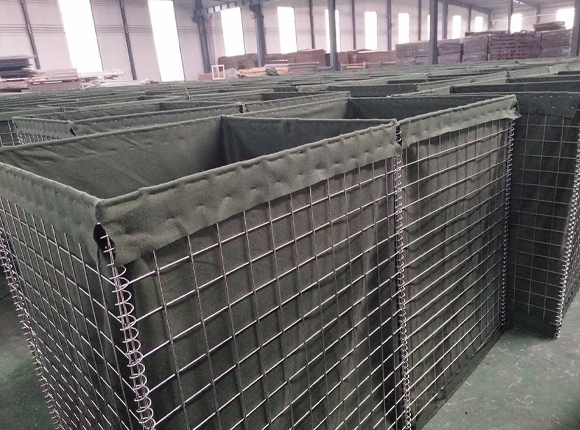

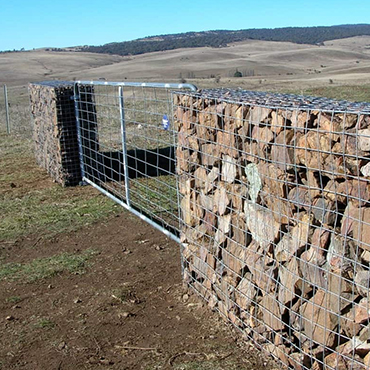

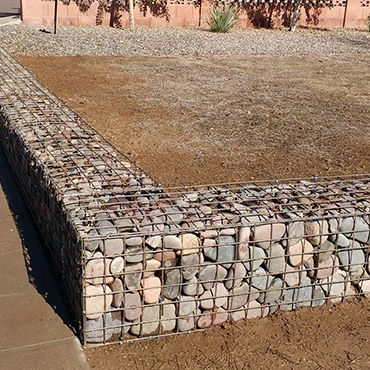

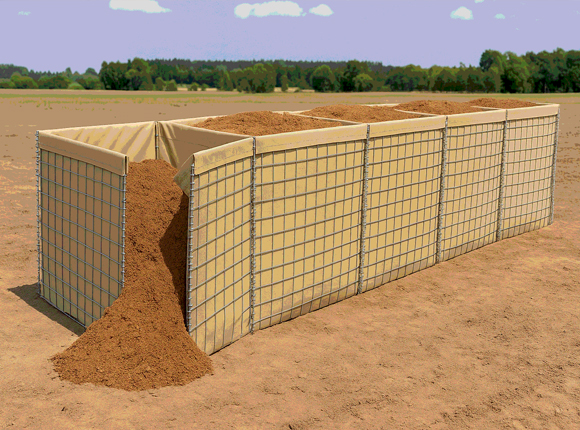

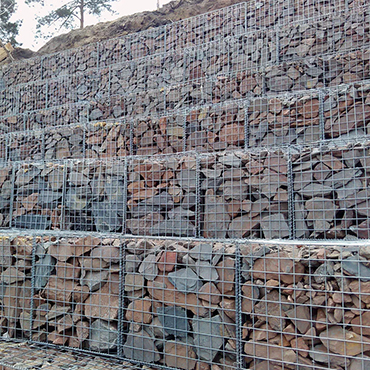

Product Images
